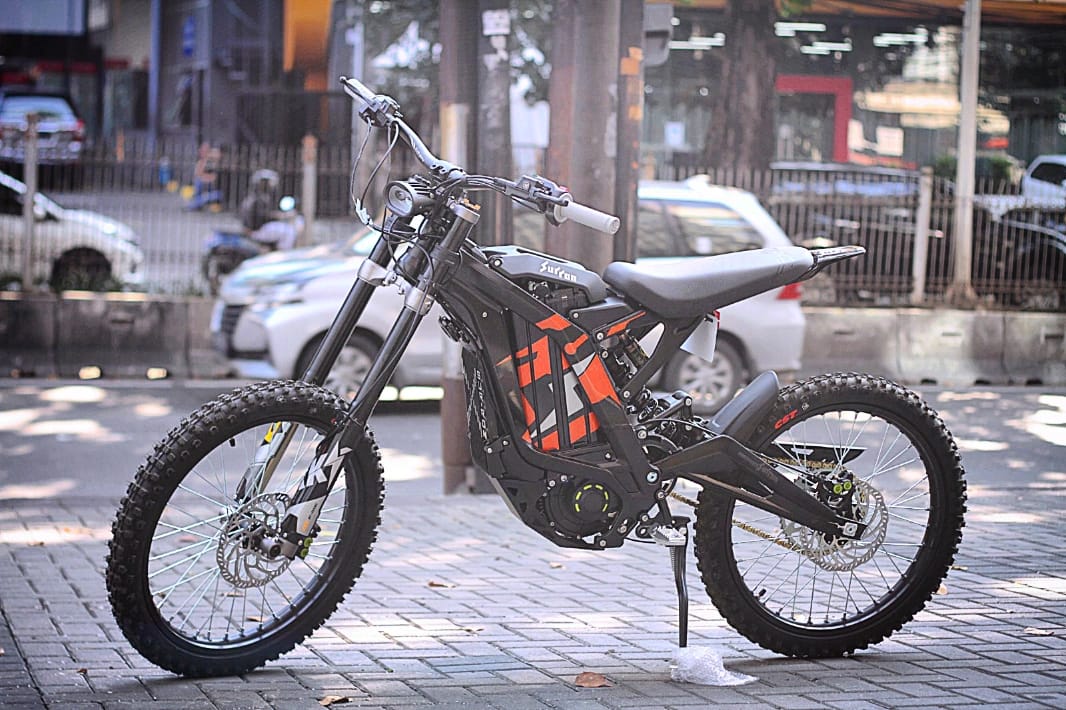

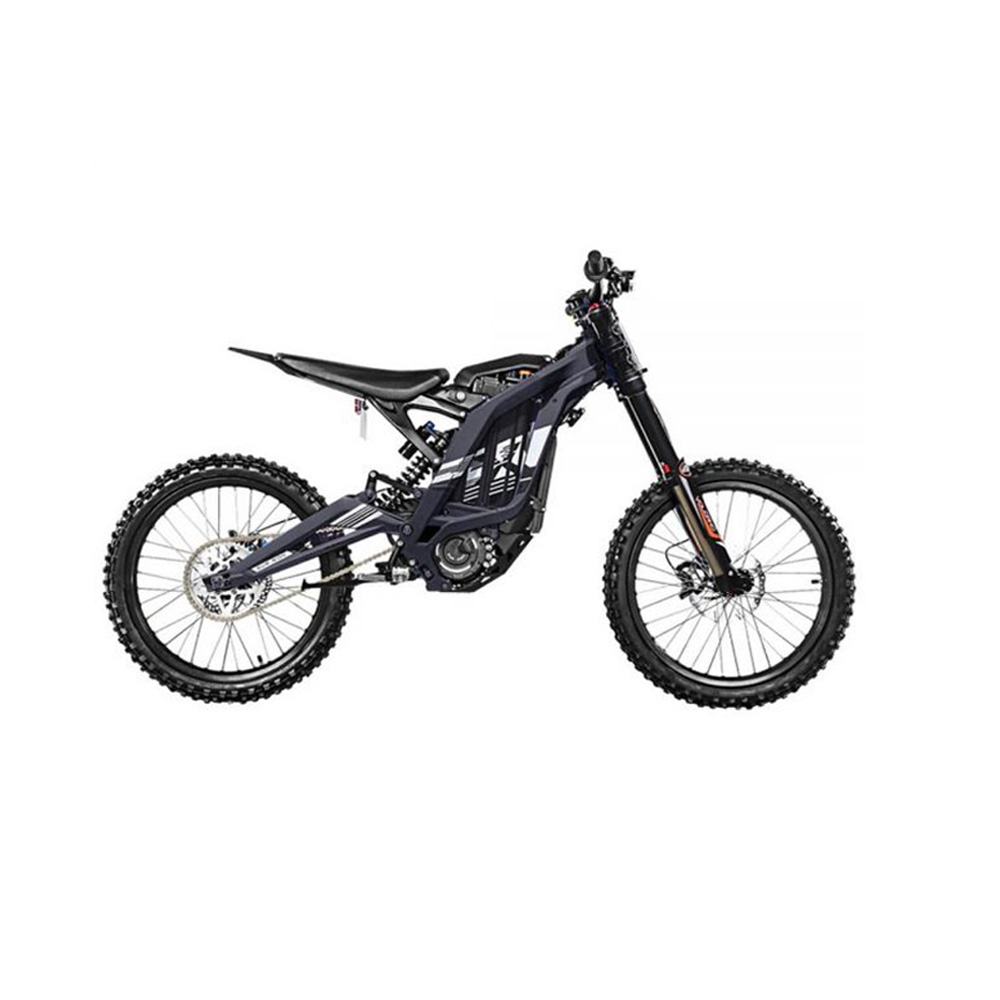

SUR-RON LIGHT BEE X-SERIES DUAL SPORT ELECTRIC DIRT BIKE
Description
The Electric powered SUR-RON LB X Series Dual Sport E Dirt Bike promises advanced fun on all terrain. Powered by a PMSM mid-mounted motor with 60V and more than 6kW of peak power from a removable Panasonic Lithium-ion battery pack. Forged lightweight alloy frame combined with high-spec components — total weight just 47kg. Equipped with 4-piston hydraulic disc brakes front and rear, LCD dash with USB charger point, and a climbing ability of over 45°, it offers hours of near-silent fun with a range of 20 to 60 miles per charge depending on mode. Top speed 47 mph (73 km/h), with a fast recharge time of just 2.5 to 3.5 hours.
Key Features
- Motor: PMSM, mid-mounted, 60V (DC), 3000W rated / 6000W peak
- Torque: 10.2Nm rated / 39Nm peak (35.4Nm @ 1000RPM)
- Peak efficiency: 95.6% motor / 98.5% controller
- Transmission: Primary belt & 420 chain, German Continental 8M CXA belt
- Battery: 60V 32Ah lithium with 176 Panasonic cells, 500 cycle life
- Charging: 10A charger, 2.5–3.5 hour charge time
- Suspension: DNM adjustable front and rear with TR link system
- Wheels: Spoked 19” front/rear, 70/100-19 CST tyres
- Top speed: 47 mph (73 km/h), Max range: 60 miles @ 20 mph average
- Climb capability: 45°
Specifications
Motor
- Type: PMSM
- Mounting Position: Mid
- Weight / External Diameter: 7.0kg / 180mm
- Axial Length: 130mm
- Peak Efficiency: 95.60%
- Cooling: Air-Cooled
Controller
- Type: X Version Sine Wave
- Dimensions: 240mm x 110mm x 50mm
- Peak Efficiency: 98.50%
- Power Modes: Eco and Sport
Motor Power System
- Rated Voltage: 60V (DC)
- Rated / Peak Power: 3000W / 6000W
- Rated / Peak Torque: 10.2Nm / 39Nm
- Output Torque @ 1000RPM: 35.40Nm
- Rated Rotation Speed: 4300rpm
- Peak Efficiency: 97.8%
- Efficiency Range (≥80%): 1.4Nm – 21.5Nm
Transmission
- Gear Ratio: 1:7.6
- Type: Primary Belt & 420 Drive Chain
- Belt: German Continental Brand, 8M CXA
Electrical Components
- Horn: European Standard Horn
- Battery: 60V 32A Lithium, 176 Panasonic Cells
- Battery Life: 500 Cycles
- Charge Level Display: Integrated Battery LCD
- Charger: 10A
- Charging Time: 2.5–3.5 Hours
- USB Port: USB-2.1 A Single Socket
- Speedometer: LCD Digital
- LED Headlight & Rear Light: Yes
Vehicle
- Chassis Material: 6061 T4 & T6 Aluminium Alloy
- Construction: Forged by 6000 Tons Pressure
- Surface Finish: Anodic Oxidation
- Front Suspension: DNM Adjustable Pre-load & Compression
- Rear Shock: DNM Adjustable with TR Link System
- Wheels: Spoked 19 x 1.4 Alloy Hubs
- Tyres: 70/100-19 CST Front & Rear
- Top Speed: 47 MPH (73 KMH)
- Max Range: 60 Miles @ 20 MPH Avg
- Net Weight: 47kg
- Max Load: 100kg
- Max Climb: 45°
- Rear Sprocket: 48T
- Side Stand: Yes with kill switch
- Dimensions: 1870mm x 780mm x 1040mm
- Ground Clearance: 270mm
- Wheelbase: 1260mm
- Seat Height: 84–88cm
Crate Data
- Crate Size: 1650mm x 850mm x 310mm
- Gross Weight: 70kg
- Assembly Required: Handlebars, footrests & front wheel
Warranty
- Battery / Chassis / Swing Arm: 6 Months (or 20,000 miles on battery)
- Please note: Any work on high-voltage systems must be performed by a qualified dealer with hybrid electric vehicle certification.
Customer Reviews
Write a Review
Alex
Melbourne, AU
Amazing electric dirt bike! The acceleration is smooth, and it handles off-road trails perfectly. Battery life is impressive too.
Reply from Sur-Ron Team:
Hi Alex, thank you for the great review! We're thrilled you enjoy the Light Bee X and its performance on trails. Ride safe!
Sam
Perth, AU
This is my first electric dirt bike, and I couldn't be happier. Strong motor, easy to control, and perfect for weekend off-road adventures.
Reply from Sur-Ron Team:
Hi Sam, thanks for your review! We're glad you love your Light Bee X. Enjoy your weekend rides and keep exploring!
Jordan
Sydney, AU
Incredible bike! The power delivery is smooth and the build quality is top-notch. Highly recommend for anyone looking for an electric dirt bike.
Frequently Asked Questions
What is the top speed of the Sur-Ron Light Bee X?
The Light Bee X can reach speeds up to 47 mph (75 km/h), depending on terrain and rider weight.
Is it street-legal?
No, this model is designed for off-road use only. Street-legal versions are available in certain regions.
How long does the battery last?
The 60V battery provides a range of 20–60 miles (32–96 km), depending on riding mode, terrain, and rider weight.
Can the battery be removed for charging?
Yes, the battery is removable for easy charging and storage.
What maintenance is required?
Regular maintenance includes checking the suspension, brakes, and chain. Periodic inspection of the battery and electrical components is recommended.
What is the maximum rider weight?
The Light Bee X can support a maximum load of 100 kg (220 lbs).
